Thông tin chi tiết sản phẩm:
|
| Kích thước: | 245 mm W, 105 mm H, 320 mm D | Sự định cỡ: | Nhà máy/lĩnh vực |
|---|---|---|---|
| Trưng bày: | LCD | Nhiệt độ hoạt động: | 0 đến +40 |
| Phạm vi đo lường: | +10 ~ -65dbm / +5 ~ -70dbm | Phạm vi bước sóng: | 850 ~ 1700nm |
| Bước sóng hiệu chuẩn: | 850/980/1310/1490/1550/1610nm | ||
| Làm nổi bật: | LCD optical power meter,wavelength range power meter,CE certified optical meter |
||
The Optical Power Meter is an essential tool for measuring optical power levels in fiber optic networks. This versatile device offers accurate and reliable measurements, making it ideal for a wide range of applications.
With a convenient USB/RS232 data interface, the Optical Power Meter allows for easy connectivity to various devices for data transfer and analysis. This feature enhances the efficiency and flexibility of the measurement process, ensuring seamless integration with existing systems.
The LCD display of the Optical Power Meter provides clear and easy-to-read measurement results, enabling users to quickly assess power levels with precision. Whether in bright or dim lighting conditions, the display ensures optimal visibility for accurate readings.
Equipped with a measurement range of +10 to -65 dBm, the Optical Power Meter offers reliable performance across a broad spectrum of power levels. This wide measurement range allows for versatile use in different scenarios, providing accurate readings for various optical power levels.
Whether for factory settings or field applications, the Optical Power Meter offers calibration options to suit different requirements. Users can choose between factory calibration for standard accuracy or field calibration for on-site adjustments, ensuring optimal performance based on specific needs.
| Model | U8202 | |||
| Number of Channels | 2 | |||
| Power Range | +10 ~ -65dBm / +5 ~ -70dBm | |||
| Wavelength Range | 850 ~ 1700 nm | |||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm | |||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | |||
|
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) | |||
|
Relative Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical | |||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) | |||
| Return Loss | ＞ 40 dB | |||
| Operation Temperature | 0 ～ +40℃ | |||
| Storage Temperature | -30 ～ +80℃ | |||
| Recalibration Period | 2 years | |||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | |||
| Weight | 2.0 kg | |||

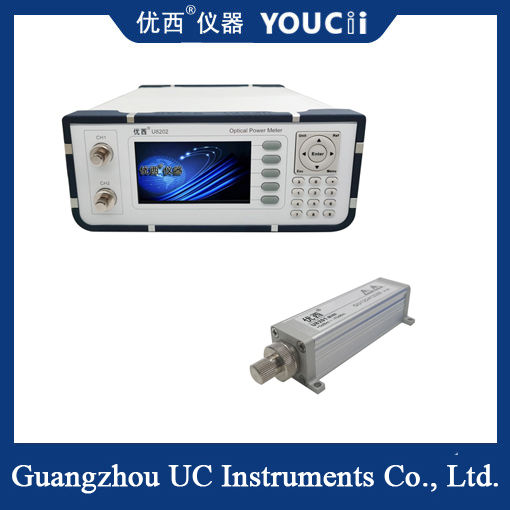

The YOUCii U8202 Optical Power Meter is a versatile tool designed for precise power measurements in various optical fiber communication systems. With its double channel capability, this power meter is suitable for a wide range of applications and scenarios.
The U8202 is equipped with PC/APC connectors, making it compatible with a variety of optical interfaces commonly used in the industry. This flexibility allows for seamless integration into different network setups without the need for additional adapters.
Operating within a temperature range of 0 to +40℃, this power meter can be used in both indoor and outdoor environments, providing reliable performance under different conditions. Whether in a controlled laboratory setting or out in the field, the U8202 delivers accurate measurements consistently.
Calibration options include both factory and field calibration, ensuring that the device maintains its accuracy over time. Users can choose the calibration method that best suits their needs, whether for periodic recalibration or on-the-spot adjustments.
