Thông tin chi tiết sản phẩm:
|
| Công suất đầu ra: | Lên tới + 20mW | Giao diện điều khiển: | USB/RS232 |
|---|---|---|---|
| đầu nối quang: | UPC/APC | Bước sóng tùy chọn: | 1270, 1290, 1310, 1330 nm (Các bước sóng khác là tùy chọn) |
| Gói thiết bị: | Bươm bướm | Độ chính xác bước sóng: | ± 2nm |
| Băng thông @ 3 dB: | ＜ 0,1nm | ||
| Làm nổi bật: | FC/APC tunable laser source,20 DBm output laser source,100% modulation depth laser |
||

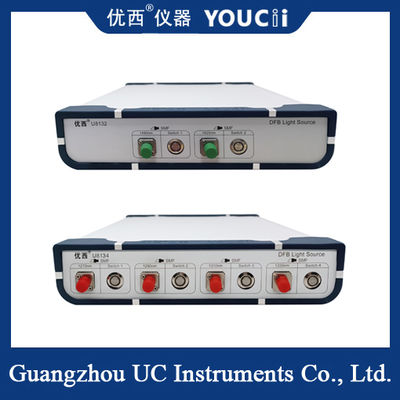

The dual-channel point light source is a cutting-edge device that offers unparalleled precision and flexibility in optical testing and research applications. With its multi-functional control interface options, outstanding output power capacity and advanced modulation functions, this point light source is an essential tool for professionals in the optoelectronics industry.
Control interface: The dual-channel point light source is equipped with multiple control interface options, including USB and RS232. This allows for seamless integration into various Settings and facilitates user operation and data transmission.
Output power: With an impressive output power of up to +20 dBm, this point light source provides high-intensity light signals and is suitable for various test requirements. Whether you are conducting fiber optic testing, spectroscopy or other optical experiments, this device can ensure reliable and consistent power output.
Specification
| Model # | U8134H-20 |
| Device Package | Butterfly |
| Optional Wavelength | 1270, 1290, 1310, 1330 nm (Other wavelengths are optional) |
| Wavelength Accuracy | ± 2 nm |
| Output Power | 100mW (20dBm) |
| Connector Type | FC/APC (Other Adaptor Can Be Customized) |
| Bandwidth@3 dB | ＜ 0.1 nm |
| Bandwidth@20 dB | ＜0.5 nm |
|
Output Power Stability within 15mins |
±0.01 dB |
|
Output Power Stability within 8 hrs |
±0. 05 dB |
| SMSR | ＞ 45 dB |
| Operation Temperature | 0～ +40 ℃ |
| Storage Temperature | -30～+80 ℃ |
| Dimensions | 285 mm W, 105 mm H, 360 mm D |
| Weight | 5.0 kg |
The dual-channel point light source is a highly integrated precision optical device. By combining two point light sources of different wavelengths into one, it provides users with a dual-color lighting solution featuring highly unified positions and precisely controllable timing. It is playing an irreplaceable role in advanced research and applications that require high spatiotemporal accuracy and multi-parameter synchronous detection, and is a typical representative of the integration of modern optoelectronic technology.
